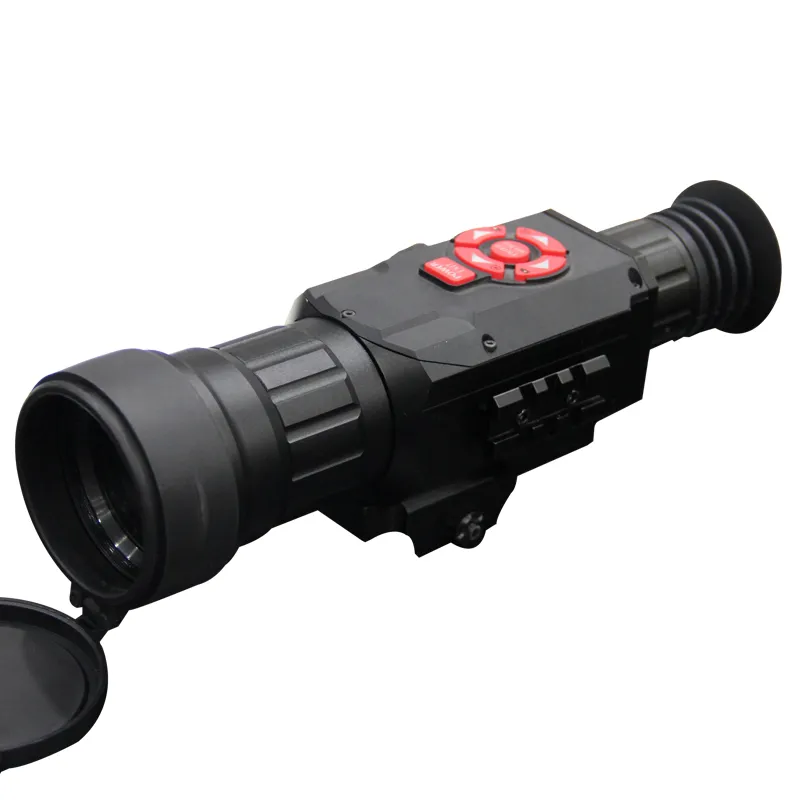

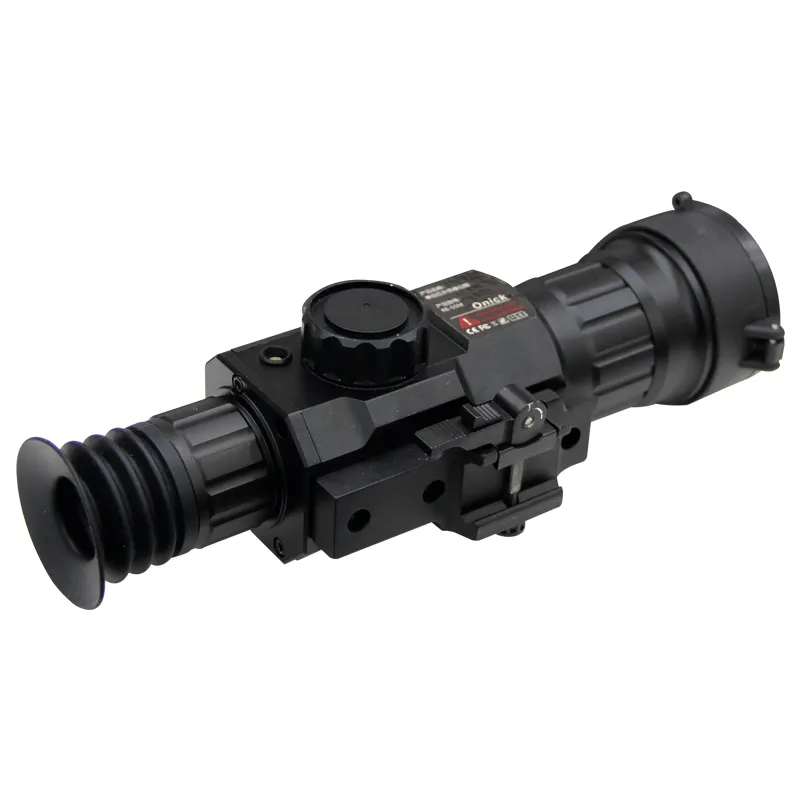

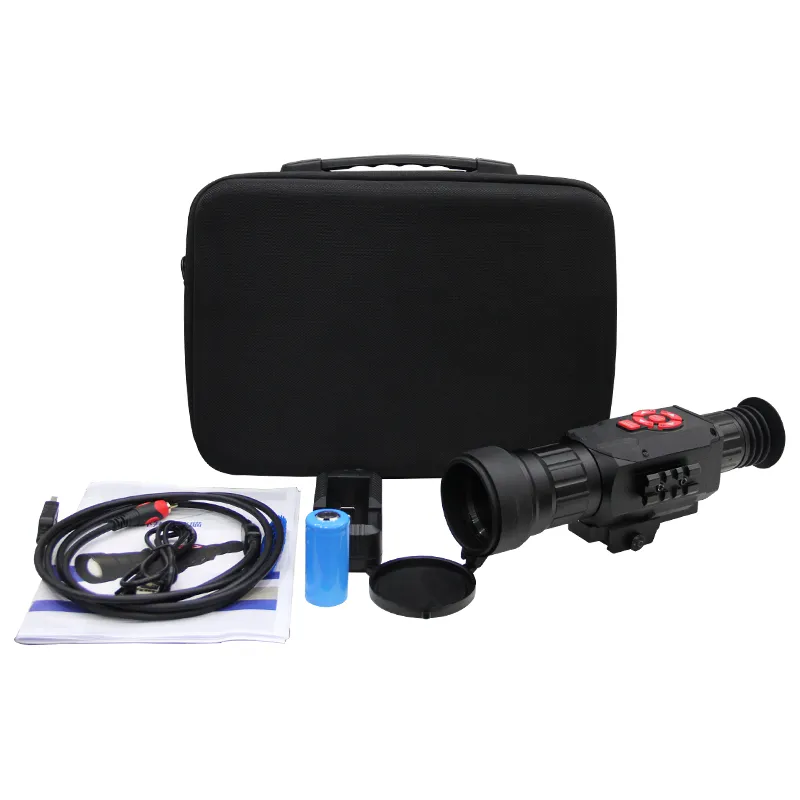

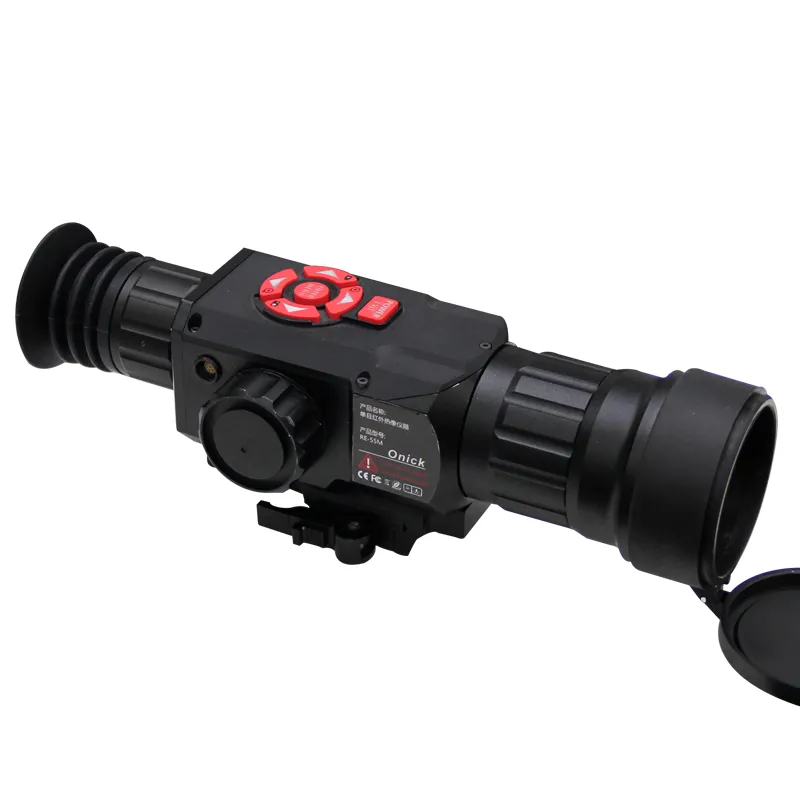

RM-55 Monocular Thermal Imaging Riflescope
Onick RM-55 monocular day and night infrared night vision sight adopts advanced uncooled vanadium oxide or polysilicon and advanced imaging circuit to optimize the optical system. The product appearance and structure design is optimized based on ergonomics.
€0
Product Details
Product Details
Onick RM-55 monocular day and night infrared night vision sight adopts advanced uncooled vanadium oxide or polysilicon and advanced imaging circuit to optimize the optical system. The product appearance and structure design is optimized based on ergonomics. The product has enhanced waterproof design and reaches IP67 protection level. Low power consumption design, using a single built-in rechargeable battery, the continuous working time can reach more than 5 hours, meeting the requirement of using the battery all night without replacing it. In addition, it has advanced fast startup performance and can quickly image in 3 seconds after booting, which significantly improves the user's quick response ability. The product adopts a high refresh frequency design, allowing the operator to gain the ability to observe fast-moving targets. It is equipped with a high-quality objective lens, has high performance, is not afraid of strong light, is safe and reliable, and can be installed on a tripod for long-distance night observation. The night observation distance can reach 1000 meters, and can be connected to cameras, camcorders, and wireless image transmission equipment.
Product features:
1. Portability: small size, easy to carry, and good concealment.
2. High-definition display: The eyepiece is a high-definition 1024×768 resolution OLED display, which can work normally at minus -45°.
3. Strong adaptability: can be monitored in all environments around the clock.
4. Equipped with expansion slot: large space for expansion and upgrade, and can be connected to external mobile devices to achieve wireless device control and wireless video transmission.
5. Stable power supply: high-performance lithium battery, strong power to meet outdoor needs. There is also a super-capacity external mobile power supply to meet long-term uninterrupted outdoor use.
6. High structural strength: The appearance is made of hard material as the main material of the structural design. It has good craftsmanship and reliability, and its appearance after processing is good.
Application fields:
It can be used in military personnel, special police, public security law enforcement, drug detection and anti-smuggling, armed police counter-control, border patrols, coastal patrols and individual night reconnaissance.
| Detector type | Uncooled vanadium oxide or polysilicon |
| Detector specifications | 384×288 (640×480 optional) |
| Response band | 8~14μmm |
| Pixel size | 17μmm |
| Frame rate | 25Hz/50Hz |
| Graduation lines | eight types |
| Polarity | white hot/black hot |
| False color mode | nine types |
| Hotspot tracking | supported |
| Boundary detection | supported |
| Picture-in-picture enhanced zoom | supported |
| Electronic amplification | 1~8 times continuous amplification |
| Lens focal length | 19mm/35mm/f=1.0/50mm f=1.2 |
| Field of view | 7.15° × 5.35° |
| Focusing method | manual |
| Horizontal viewing angle | 4.63°×3.64° |
| Aperture | F0.8 |
| image storage | image storage |
| Video format | MP4 |
| Image resolution | 1024×576 (D1) |
| Image storage | JPG |
| Storage capacity | 8G standard (maximum optional 64G) |
| Eyepiece parameters | |
| Display | OLED 0.5 inches |
| Contrast ratio | 10000:1 |
| Exit pupil distance | 26mm |
| Magnification | 12x |
| Eyepiece resolution | 1024×768 |
| Observation distance | |
| Personnel (1.8m×0.5m) Detection: 1.5km Identification: 0.38km | |
| Vehicle (2.3m×2.3m) detection: 3km identification: 0.875km | |
| Interface features | |
| Video output | PAL/NTSC |
| External power supply | DC 5V, maximum current 1A |
| Wireless data | wireless image transmission RTSP |
| Power supply reverse connection positive and negative adaptive | |
| Data export | USB 2.0 |
| data sensor | data sensor |
| Satellite positioning | Beidou/GPS/GLNSS |
| Height sensor | supported |
| Electronic compass | (geomagnetic sensor) support |
| Azimuth | Support |
| Attitude detection | support |
| physical properties | physical properties |
| Working temperature | -45℃～+60℃ |
| Storage temperature | -45℃～+60℃ |
| Working humidity | 95% RH MAX (no condensation) |
| Protection level | IP66 |
| Input voltage | DC2.5V～5V |
| Power consumption | average power consumption 4W |
| Impact resistance | military grade |
| Battery capacity | 25500 rechargeable lithium batteries 3.7V@3500mAH; |
| Working hours | Continuous working time >5 hours |
| Dimensions (mm) | 220 (L) × 85 (W) × 80 (H) |
| Net weight | <1.1kg (including battery, hand strap) |
